7500t/h装船机总体设计及内臂架结构设计(含CAD图)

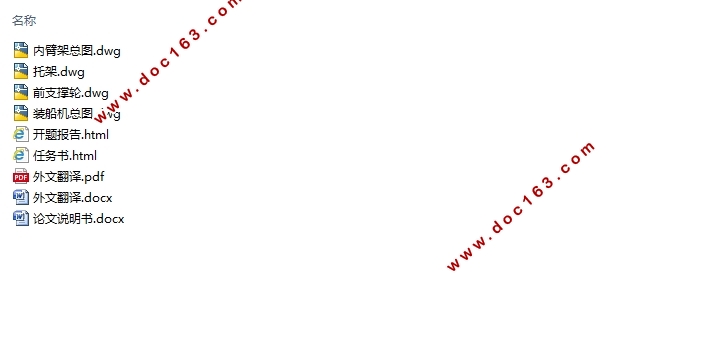

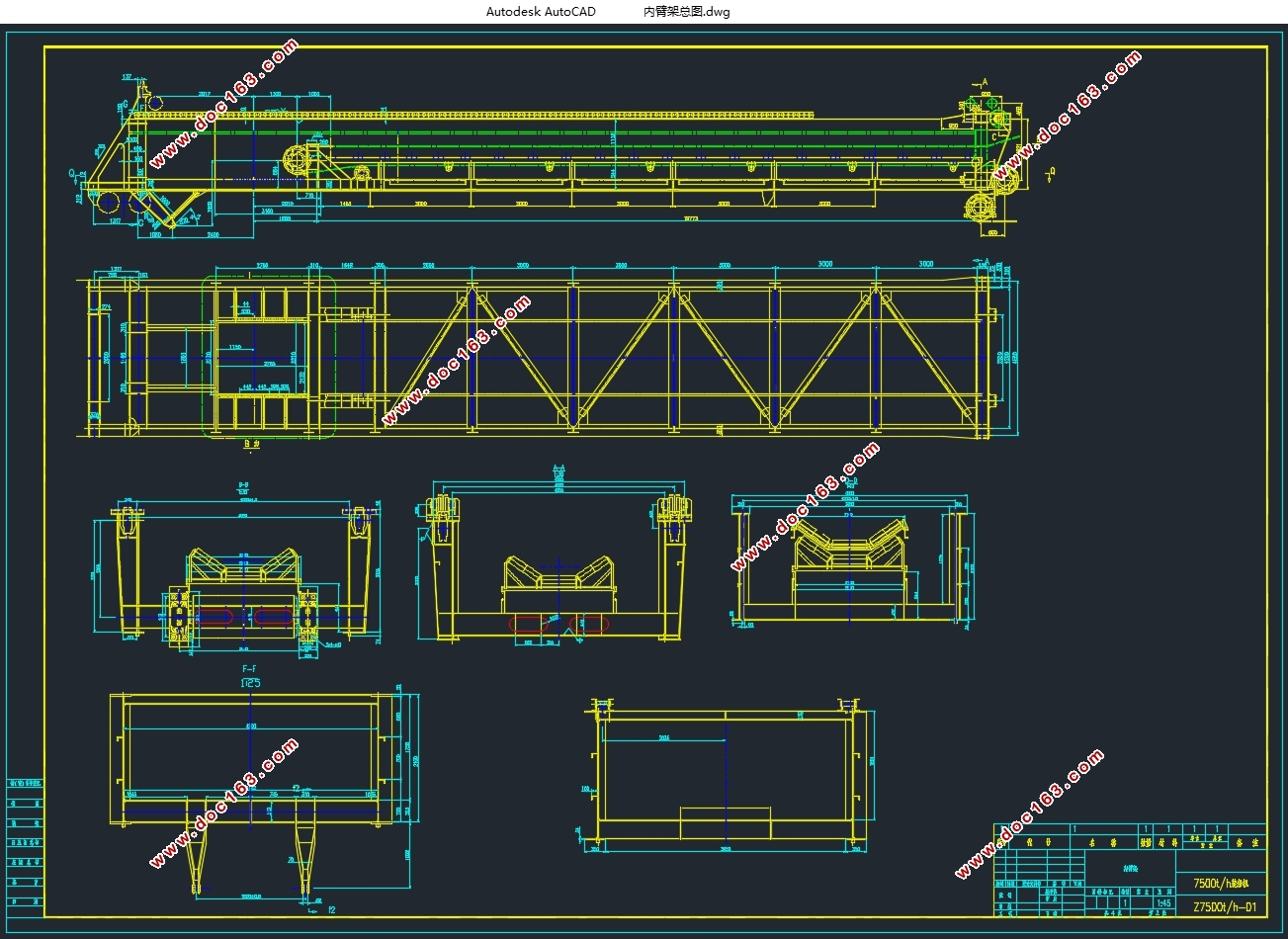

7500t/h装船机总体设计及内臂架结构设计(含CAD图)(任务书,开题报告,外文翻译,论文说明书17000字,CAD图4张)
摘要
本次毕设以起重机专业知识为基础，对7500t/h装船机进行了整体设计和内臂架结构的设计。首先对装船机的整机进行设计，其中包括了工作级别，各机构大致尺寸和重量。然后计算出各种载荷以及载荷组合，完成了对轮压和抗倾覆稳定性进行了校核计算，其结果满足设计要求。用Workbench对模型有限元分析，判断结构的强度和稳定性是否符合要求。
本文以7500t/h装船机为研究对象，在整体设计时，参考起重机设计手册，对装船机进行了类比，其结果也满足设计要求。同时，在内臂架设计过程中，参考传统的设计方法，利用计算机辅助设计软件和有限元分析软件，求得了内臂架在受载时的应力云图和应变云图，大大节省了设计时间，也为以后的内臂架结构优化设计提供了理论基础。
关键词：装船机；内臂架；结构设计；有限元分析


ABSTRACT
Based on the professional knowledge of the crane, the overall design and the inner boom structure design for the 7500t/h ship loader were completed in the graduation design.First of all,the overall design includes the working level,the approximate size and weight of each mechanism.Then various load and load combinations were calculated,and check the wheel pressure and anti-overturning stability,the results met the design requirements. import it into workbench for finite element analysis,determine whether the strength and stability of the structure meet the requirements. [资料来源：http://Doc163.com]
This article takes the 7500t/h ship loader as the research object. In the overall design, the crane design manual is referenced and the ship loader is compared. The results also meet the design requirements. At the same time, in the design process of the inner boom structure, with reference to the traditional design method, the computer-aided design software and finite element analysis software were used to obtain the stress cloud map and strain cloud diagram when the inner boom structure was loaded, which greatly saved the design time. It provides a theoretical basis for the future optimization design of the inner boom structure.
Key Words:Shiploader；Inner Boom Structure；Structure Design；Finite Element Analysis

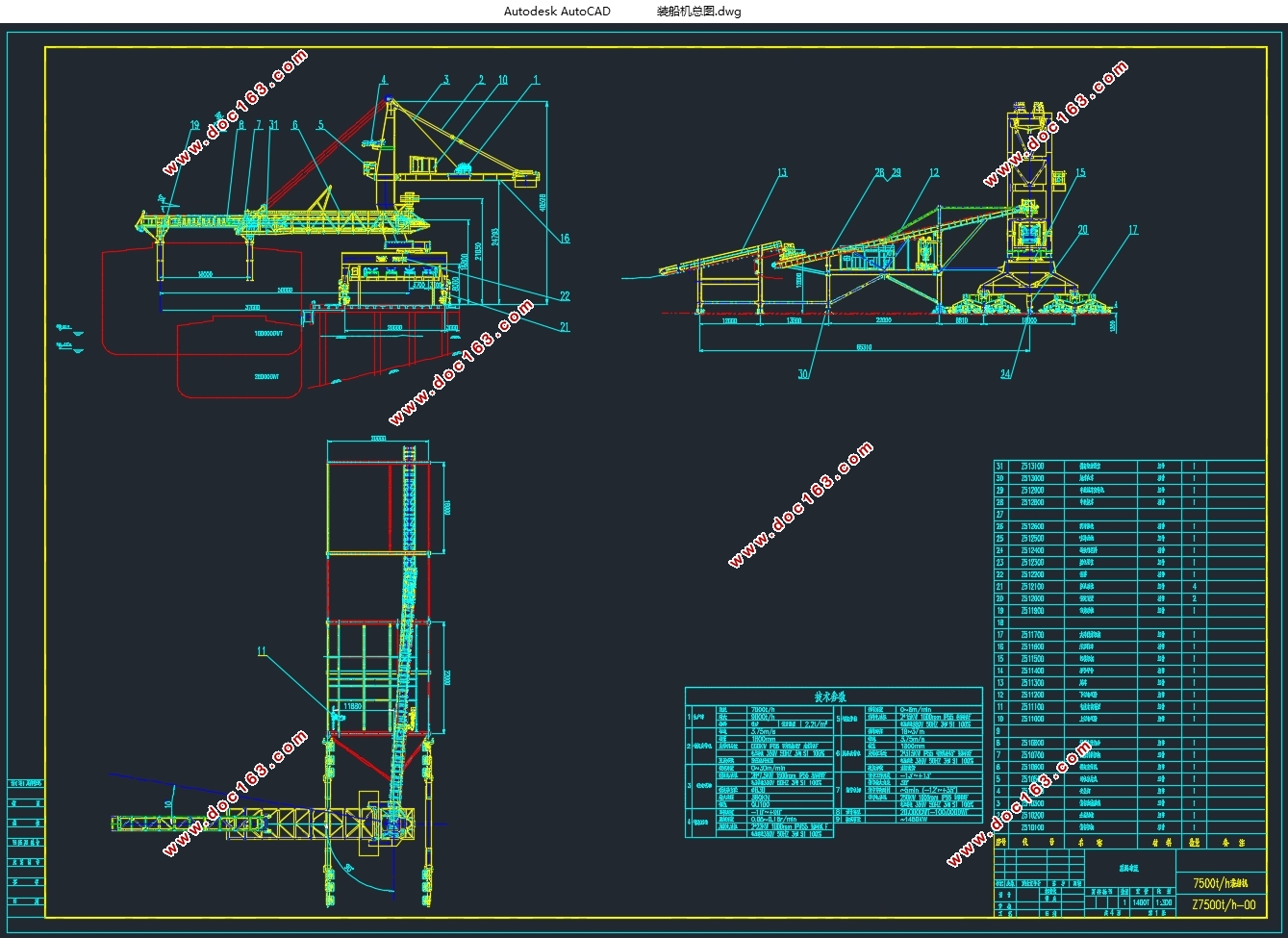

装船机的设计技术参数
设计参数是装船机设计的依据，它指出了装船机作业性能指标。包括：生产率、工作速度、轨距、轮压等数据，本机的设计参数为：
（1）额定生产率：7500t/h
（2）最大生产率：9000t/h
（3）物料：铁矿；设计密度：2.2t/m³
（4）臂架皮带机带速：3.75m/s

（5）臂架皮带机带宽：1800mm
（6）行走机构行走速度：0~30m/min
（7）行走机构行走轮直径：φ630
（8）最大轮压：380KN
（9）钢轨：QU100
（10）臂架回转角度：-10°~+90°
（11）臂架旋转速度：0.05~0.15r/min
（12）臂架伸缩速度：0~6m/min
（13）伸缩距离：19~37m
（14）尾车皮带机带速：3.75m/s
（15）尾车皮带机带宽：1800mm
（16）俯仰工作角度：-13°~+13°
（17）俯仰最大角度：35°
（18）俯仰仰起时间：~5min（-13°~+35°）
（19）设计船型：20,000DWT~100,000DWT
（20）设计低水位：-1.47m
（21）设计高水位：2.12m
（22）轨距：20m
（23）驱动电机：均采用380V交流电，50Hz
  [来源：http://www.doc163.com]

目录
第1章 绪轮......................................................................................................................................1

1.1装船机的综述...................................................................................................................1
1.2装船机的结构形式以及特点...........................................................................................1
1.3装船机国内外发展现状 ..................................................................................................2
1.4装船机的发展趋势...........................................................................................................2
1.5选题意义...........................................................................................................................3
第2章 整体设计..............................................................................................................................4
2.1 装船机的设计要求...........................................................................................................4
2.2 装船机的设计技术参数...................................................................................................4 [资料来源：https://www.doc163.com]
2.3 装船机整体设计...............................................................................................................4
2.3.1 装船机的选定........................................................................................................5
2.3.2 总体方案设计的原始参数....................................................................................5
2.3.2.1 臂架绞点高度的确定.................................................................................5
2.3.2.2 回转机构的确定.........................................................................................6
2.3.2.3 臂架长度的确定.........................................................................................6
2.3.2.4 溜筒长度的确定.........................................................................................7
2.3.2.5 门架高度的确定.........................................................................................7
2.3.2.6 俯仰机构的确定.........................................................................................8 [来源：http://www.doc163.com]
2.3.2.7 臂架皮带机.................................................................................................8
2.3.2.8 上部结构.....................................................................................................8
2.3.2.9 大车行走机构的确定.................................................................................8
2.4 整机校核...........................................................................................................................8
2.4.1 工况、载荷介绍....................................................................................................9
2.4.2 载荷的计算..........................................................................................................10
2.4.2.1 装船机各部分自重...................................................................................10
2.4.2.2 工作载荷...................................................................................................10
2.4.2.3 风载荷的计算...........................................................................................10

[来源：http://www.doc163.com]

2.5 各种工况的校核.............................................................................................................14
2.5.1 轮压和抗倾覆稳定性概述..................................................................................14
2.5.2 工况1：无风工作情况........................................................................................16
2.5.2.1 工况1下，支撑力和轮压的计算.............................................................17
2.5.2.2 工况1下，抗倾覆性的计算.....................................................................19
2.5.3 工况2：有风工作情况........................................................................................19
2.5.3.1 工况2下，支撑力和轮压的计算.............................................................20
2.5.3.2 工况2下，抗倾覆性的计算.....................................................................20
2.5.4 工况3：非工作最大风载荷作用........................................................................21 [资料来源：Doc163.com]
2.5.4.1 工况3下，支撑力和轮压的计算.............................................................22
2.5.4.2 工况3下，抗倾覆性的计算.....................................................................23
2.6本章小结.........................................................................................................................23
第3章 金属结构设计....................................................................................................................24
3.1 内臂架结构设计方法及其载荷计算............................................................................24
3.1.1 内臂架结构设计方法.........................................................................................24
3.1.2 内臂架结构受力分析.........................................................................................24
3.1.3 内臂架结构的工况.............................................................................................25
3.2 内臂架结构三维模型建立............................................................................................26 [来源：http://www.doc163.com]
3.3 内臂架结构有限元分析................................................................................................27
3.3.1 有限元分析方法介绍.........................................................................................27
3.3.2 基于Workbench的内臂架结构有限元分析......................................................27
3.3.3 有限元分析结果.................................................................................................30
3.4 结构优化........................................................................................................................32
3.5 本章小结........................................................................................................................32
第4章 经济性和环境影响分析...................................................................................................33
4.1 经济性分析....................................................................................................................33

[资料来源：http://doc163.com]

4.1.1 材料的选择.........................................................................................................33
4.1.2 结构的优化.........................................................................................................33
4.1.3 零件的选择.........................................................................................................33
4.1.4 加工的设计.........................................................................................................33
4.2 环境影响分析................................................................................................................34
第5章 总结与展望.......................................................................................................................35
5.1 总结................................................................................................................................35
5.2 不足与展望....................................................................................................................35 [版权所有：http://DOC163.com]
5.2.1 不足.....................................................................................................................35
5.2.2 展望.....................................................................................................................36
参考文献......................................................................................................................................37
致敬..............................................................................................................................................38 [资料来源：www.doc163.com]
