测绘院高层办公楼综合性建筑给排水工程设计(含CAD图)

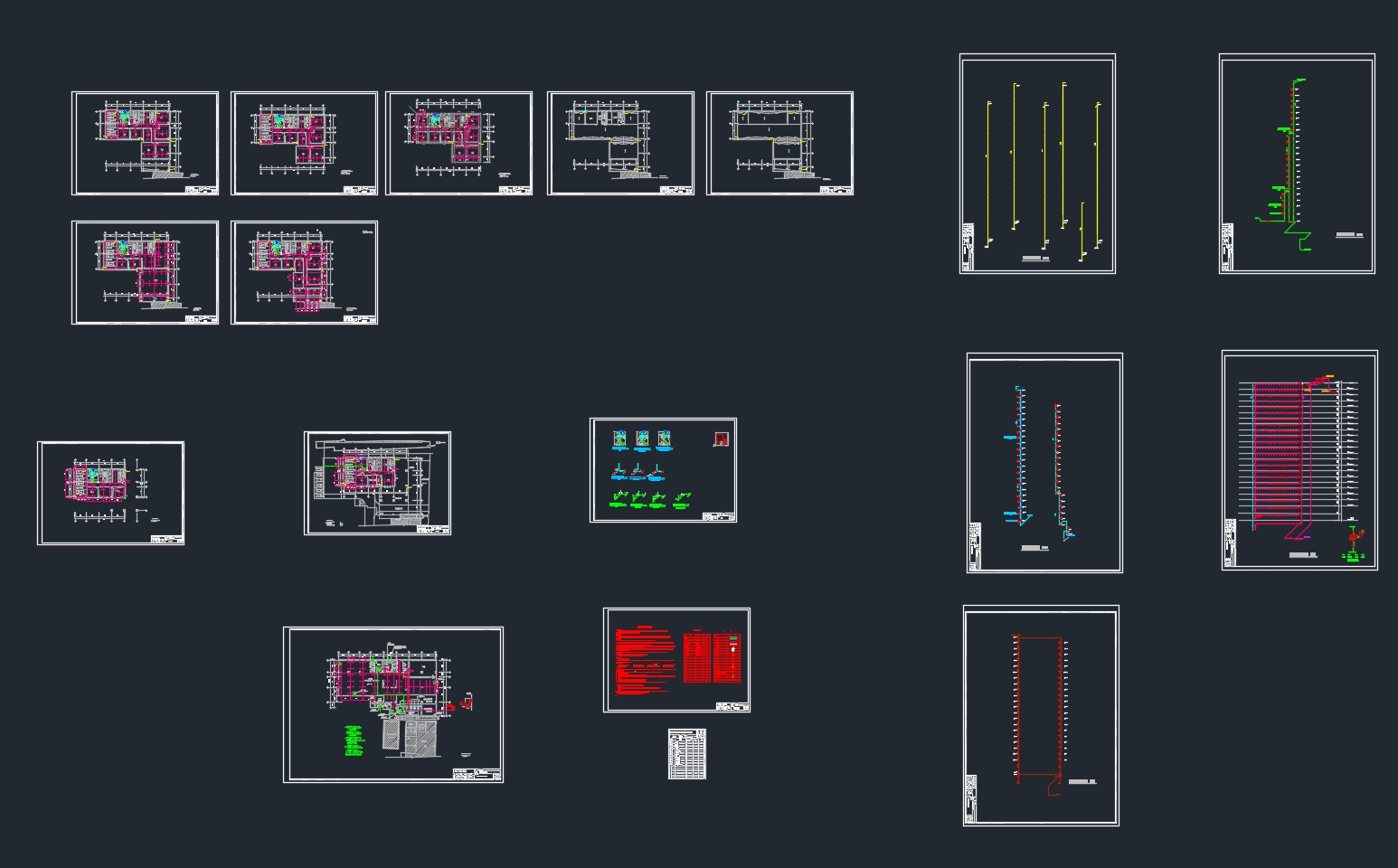

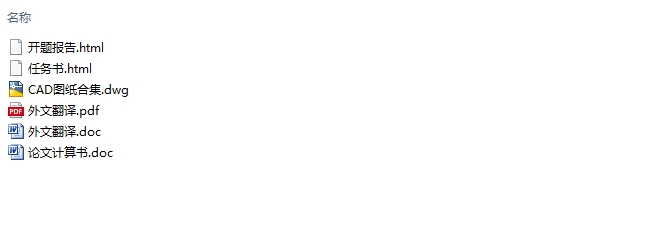

测绘院高层办公楼综合性建筑给排水工程设计(含CAD图)(任务书,开题报告,外文翻译,论文计算书17000字,CAD图纸16张)
摘     要
本设计一层至地上四层为市政管网直供，五至二十二层为水泵水箱联合供水的给水方式。直供部分从市政给水管网接一根DN150的引入管，另两根DN100的引入管接至地下一层生活水池和消防水池。生活水池为不锈钢生活水箱，消防水池采用砖砌混凝土结构，放置室外。排水采用生活污、废水合流制，通气管除一至四层排水外均采用专用通气立管通气。泵房排水槽经汇集排至地下一层污水井，经潜污泵提升排至检查井再经过化粪池处理后排入市政排水管。建筑五层以上的生活污水管在四层吊顶内，将各单元生活污水管适当汇集转换到排水立管后排出室外。屋面雨水经屋面雨水斗收集后由雨水管排至地面作散水。
根据规范，该建筑为一类建筑，属中度危险一级。室内消防流量30L/s，室外30L/s。充实水柱取12m，水龙带长度取25m，水枪喷嘴流量5.2L/s，消防立管管径为De110。在顶层设试验消火栓一个，每个室内消火栓箱内均设有远距离启动消防泵的按钮。
该建筑采用湿式自动喷淋灭火系统，报警阀设于地下一层，各层均设水流指示器和信号阀，其信号均送入消防控制中心进行处理。各层均采用自动喷淋系统，地下一层采用下垂式喷头。各层均设末端试压装置以及放空管。本工程的自动喷水灭火系统分3个区。屋顶水箱为20立方米，是生活消防合用水箱，贮存有生活、10min自动喷水灭火系统、室内消火栓系统用水量。自动喷水灭火系统和消火栓系统的初期灭火由水箱供水，后期供水由地下室的消防水泵和自喷泵供水，各支管与立管连接处设置减压孔板。

根据重力式雨水系统和虹吸式雨水系统的设计分析及造价对比后，本设计采用虹吸式屋面雨水排水系统，具有雨水斗少、立管少、横吊管不需要坡度、排水量及排放速度快等特点。（由专业单位设计）
关键词:给水系统  排水系统  消火栓系统  自动喷水灭火系统 雨水系统 热水系统
Abstract
The this design 1 F go to ground previous four for municipal services tube the net keep provide, 5-22 F is water pump water tank consociation supply water of water supply way.Keep provide part the net connect lead of a DN150 into the tube from the municipal services water pipe, another two  lead of DN100 into tube connect to underground 1 F life pond and fire fight pond. Life the pond is a stainless steel life water tank, fire fight pond adoption the brick carve concrete structure and place outdoors. Drain an adoption life dirty, the waste water confluence system, ventilate tube in addition to 1-4 F drain outside and all adoption the appropriation ventilate to sign tube to ventilate. The pump house drain slot through gather together row to underground the 1 F sewage well, through Qian dirty pump promote row to check well again through septic tank processing rear row go into municipal services drain pipe. Building 5 F above of life the soil pipe is in the 4 F hang the crest, each unit life soil pipe appropriate gather together conversion to arrive drain to sign tube rear row outdoors. House noodles rain water through the house noodles rain water Dou after the collections from rain water tube the row go to the ground to make to spread water.
According to the norm, should building is a type of building, belong to medium degree dangerous one class. Indoor fire fight discharge 30 L/s, the outdoors 30 L/s. Enrichment water pillar take a 12 m and water dragon take length to take a 25 m, water gun spray the mouth discharge 5.2 L/s, and the fire fight sign a tube tube path for the De110. Establish to experiment penstock 1 at the crest layer, all establish inside each indoor penstock box long-distance leave start fire fight pump of button.
Should building adoption wet type auto spray to pour to extinguish fire system, report to the police valve to establish in underground 1 F, each all establish water current indicator and signal valve, its signal all send into fire fight control centre to carry on processing.Each all adoption auto spray to pour system, underground 1 F adoption descend a hang type to spray a head.Each all establish bitter end to try to press equip and put empty tube.The auto of this engineering spray water to extinguish fire system cent 3 area.Roof water tank for 36 sign a square rice, is life fire fight suitable for use water tank, store to contain life, 10 min auto spray water to extinguish fire system, indoor penstock system to use water quantity.Auto spray water to extinguish fire system and penstock system of initial stage extinguish fire from the water tank supply water, empress period supply water from fire fight water in the ground floor pump with from spray pump supply water, each tube with sign tube conjunction place constitution decompression bore plank. [资料来源：http://Doc163.com]
According to the design of the gravity type rain water system and the Hong absorb type rain water system analysis and after building price contrast, this design adoption the Hong absorb type house noodles rain water drain system, have rain water Dou little, sign tube little and horizontal mourn tube not demand slope, displacement and emissions speed quick etc. characteristics.(From profession unit design)
Keyword:the water supply system  drain a system penstock system  auto spray water to extinguish fire the system  hot water of the system  rain water system

1.1工程概况
本建筑是综合性建筑，地下一层，地上共二十二层。本综合楼地下一层为设备机房，一层至以上为办公室，停车场。
该建筑西面有DN300市政供水管，可提供稳定水压35m，埋深为1.50m。本工程采用生活污水与废水合流排水管道系统，生活污水汇集经化粪池处理后排入路上的城市污水管道。并且该建筑北面有DN150的市政蒸汽管供给，蒸汽温度为133℃。
  [资料来源：https://www.doc163.com]

计算书目录
摘要    2
Abstract    3
第一章——给排水工程设计任务书    6
1.1工程概况：    7
1.2设计依据：    7
1.3设计内容：    7

1.4设计图纸及要求：    7
1.5设计进度计划：    8
第二章 设计说明书    10
2.1建筑给水系统设计    10
      2.1.1给水系统选择    11
2.1.2给水系统组成    11
2.1.3给水管道布置与安装    11
2.2建筑排水系统设计    12
2.2.1排水方式选择    12
2.2.2通气管选择    13
2.2.3排水系统的组成    13
2.2.4排水管道及设备安装要求    13
2.2.5关于清扫口、检查口    14
2.3建筑消火栓系统设计    14
2.3.1设计说明    14
2.3.2设计参数    15
2.3.3系统设计    15
2.4建筑自动喷水灭火系统设计    15
2.4.1设计说明    15
2.4.2基本设计数据    16
2.5建筑热水系统设计    16
2.5.1设计说明    16
2.5.2基本设计数据    16
2.6建筑雨水系统设计    17
2.6.1系统选择    17
   2.7各系统管道材料选择    17
第三章 计算说明书    18
    3.1给水系统    18
3.1.1室内给水系统计算    19
3.1.2屋顶水箱容积    22
3.1.3地下室贮水池容积    22
3.1.4水力计算    23
3.1.5地下室加压水泵计算    29
    3.2排水系统    29
3.2.1排水立管管径确定    30
3.2.2集水井容积的计算    32
3.2.3化粪池设计计算    33
3.3消火栓系统    34
3.3.1消防水池    34
3.3.2屋顶消防水箱    34
3.3.3消火栓的布置    35
3.3.4水力计算    35
3.3.5增压系统水泵选择    39
3.3.6减压孔板计算    39 [资料来源：http://Doc163.com]
3.3.7水泵接合器设置    42
3.4自动喷水灭火系统    43
3.4.1自动喷水灭火系统的基本数据    43
3.4.2喷头的选用与计算    43
3.4.3系统的设计计算    44
3.4.4水力计算    45
3.4.5喷淋系统水泵选择    45
3.5雨水系统    46
结束语    47
参考文献    48
致  谢    49
