某高层商住宅楼建筑给排水设计(含CAD图)

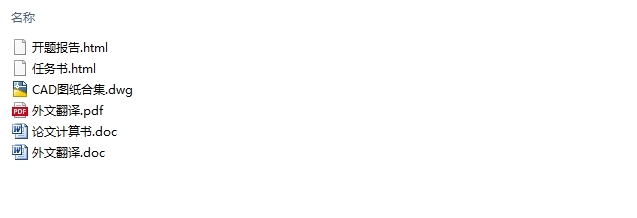

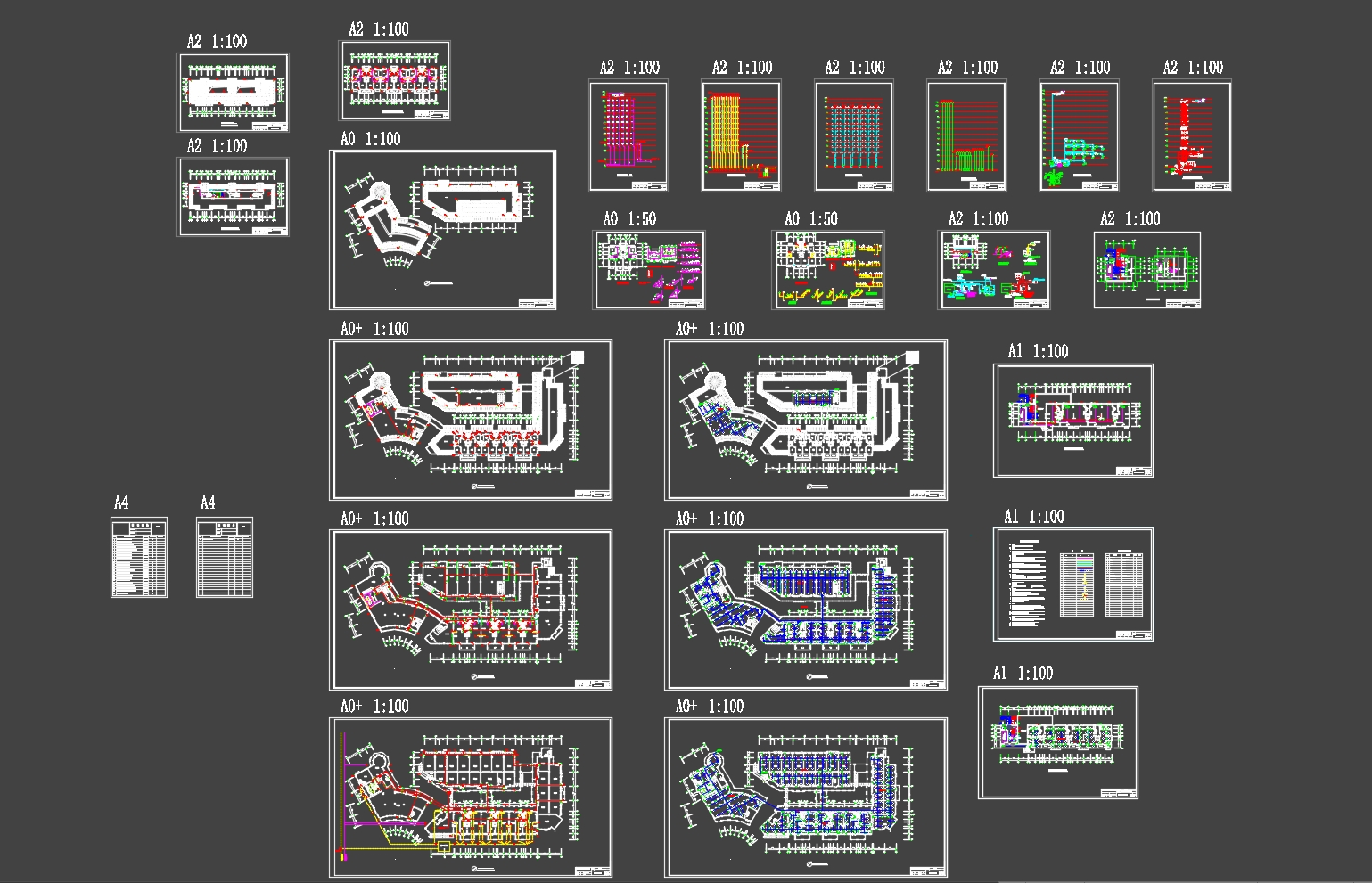

某高层商住宅楼建筑给排水设计(含CAD图)(任务书,开题报告,外文翻译,论文计算书12900字,CAD图22张)
摘     要
本设计一层至地上三层为市政管网直供，三至十一层为变频泵供水的给水方式。直供部分从市政给水管网接一根DN150的引入管，另两根DN100的引入管接至地下一层生活水池和消防水池。生活水池和消防水池采用砖砌混凝土结构，置于地下室。排水采用生活污、废水合流制。通气管除一至三层排水外均采用专用通气立管通气。泵房排水槽经汇集排至地下一层污水井，经潜污泵提升排至检查井再经过化粪池处理后排入市政排水管。建筑四层及以上的生活污水管在三层吊顶内，将各单元生活污水管适当汇集转换到排水立管后排出室外。屋面雨水排放选择重力式雨水系统，雨水经屋面雨水斗收集后由雨水管排至检查井。
根据规范，该建筑为一类建筑，属中度危险一级。室内消防流量35L/s，室外30L/s。充实水柱取12m，水龙带长度取25m，水枪喷嘴流量5.2L/s，消防立管管径为DN100、DN150。在顶层设试验消火栓一个，每个室内消火栓箱内均设有远距离启动消防泵的按钮。
该建筑采用湿式自动喷淋灭火系统，报警阀设于地下一层，各层均设水流指示器、末端试水装置和信号阀，其信号均送入消防控制中心进行处理。本工程的自动喷水灭火系统分4个区。屋顶水箱为18立方米为消防水箱，贮存10min自动喷水灭火系统、室内消火栓系统用水量。自动喷水灭火系统和消火栓系统的初期灭火由水箱供水，后期供水由地下室的消防水泵和自喷泵供水。 [资料来源：https://www.doc163.com]
关键词:给水系统、排水系统、消火栓系统、自动喷水灭火系统、雨水系统

Abstrat
In this design，on the 1F to the 3F for municipal services tube the net keep provide，4 to 12F is frequency conversion water supply pump as the water supply way. Keep provide part the net connect lead of a DN150 into the tube from the municipal services water pipe，another two lead of DN100 into tube connect to -1 F life pond and fire fight pond. Life pond and fire fight pond adoption the brick carve concrete structure and placed in the basement. Drainage using domestic sewage and wastewater combined system. Except the drainage system of 1F to 3F use stack vent， the other are used specific vent stack. The pump house drain slot through gather together row to the -1 F sewage well，through submersible sewage pumps promote row to check well again through septic tank processing rear row go into municipal services drain pipe. Building 4 F above of life the soil pipe is in the 3 F hang the crest，each unit life soil pipe appropriate gather together conversion to arrive drain to sign tube rear row outdoors. Select gravity roof rainwater drainage system. House noodles rain water through the house noodles rain roof drain after collection from rain water tube the row go to the check well. [资料来源：http://www.doc163.com]
According to the codes，the building is class one fireproof construction，belongs to one class of medium degree dangerous. Indoor fire fight discharge is 30 L/s and outdoor is 30 L/s，full water spout is 12m，hoses is 25 m，water gun spray the mouth discharge is 5.2 L/s，and the fire standpipe diameter is DN100，DN150. In the top set a fire hydrant as an experiment hydrant. All hydrant cabinet set a long-distance leave start fire fight pump of button.
The building is arranged with wet pipe fire sprinkler system. Alarm valve is arranged on the basement. Each floor should set a flow indicator，End water-test equipment and signal valve，its signal all send into fire fight control center to carry on processing. The automatic sprinkler system is divided into four zones. The fire tank is 18 cubic meters，have 10min fire water storage. Automatic sprinkler system and hydrant system of initial stage extinguish fire from the water tank supply water. Latter water supply is supply by fire pump and spray pump in the basement. [版权所有：http://DOC163.com]
Keyword: Water-supply system、Drainage system、Hydrant system、Automatic sprinkler system、Rainwater system


[资料来源：http://www.doc163.com]

目录
Abstrat    1
第一章   设计说明书    1
一、给水系统    1
1.1方案比选    1
1.2室内给水系统的组成    1
1. 3给水管道的布置与敷设    1
二、消防系统    2
2.1 消火栓系统的设置场所    2
2.2消火栓系统的组成    2
2.3消火栓系统的布置    2
三、自动喷水灭火系统    3
3.1自动喷水灭火系统的设置场所    3

3.2自动喷水灭火系统的组成    4
3.3喷头的选择与布置    4
四、排水系统    4
4.1排水方案的选择    4
4.2排水管道的安装    5
4.3雨水排水系统的选择    5
4.4雨水排水系统的组成    5
4.5雨水管道的敷设与布置    6
第二章   设计计算书    7
一、给水系统计算    7
1.1用水量计算    7
1.2给水管网水力计算    8
二、消防系统计算    13
2.1消火栓系统计算    13
2.2自喷系统计算    21
三、排水系统计算    30
3.1确定排水体制    30
3.2排水水力计算    30
四、雨水系统计算    35
4.1汇水面积计算    35
4.2雨水量计算    35
4.3雨水斗选用    36
4.4连接管计算    36 [资料来源：https://www.doc163.com]
参考文献    37
谢 辞    38
